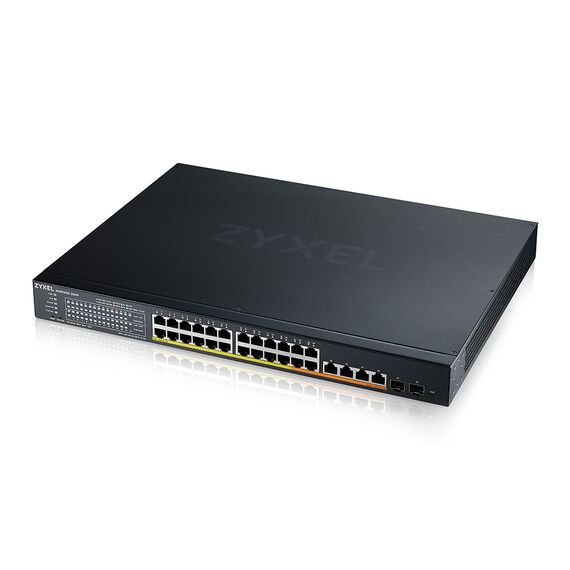

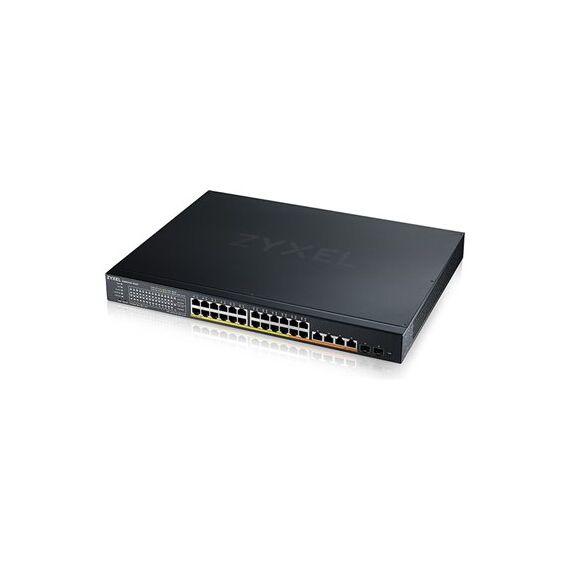

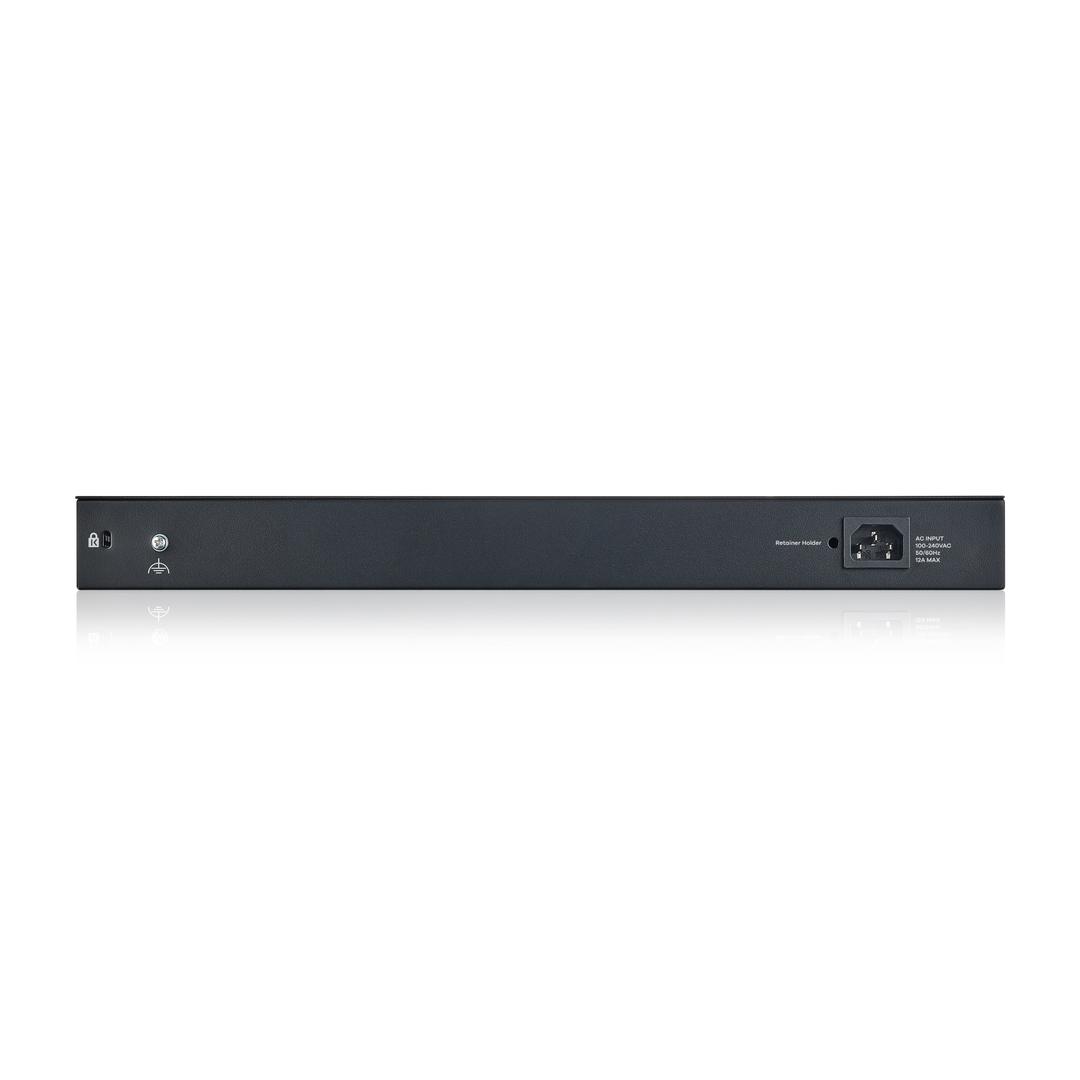

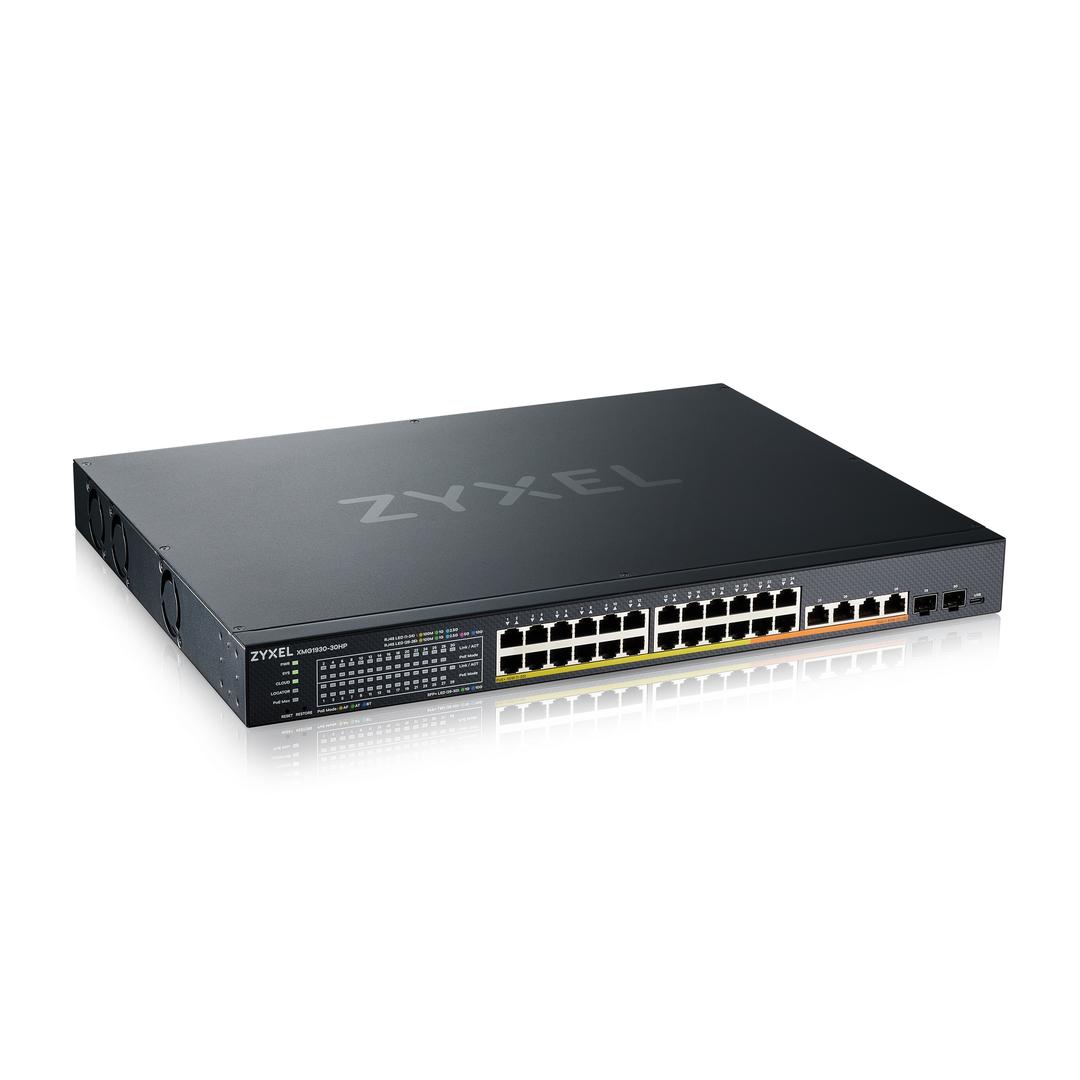

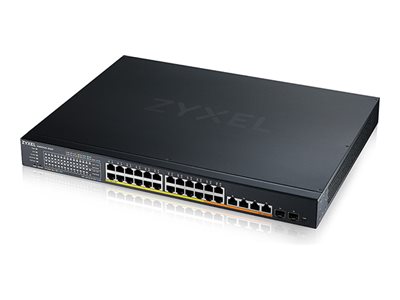

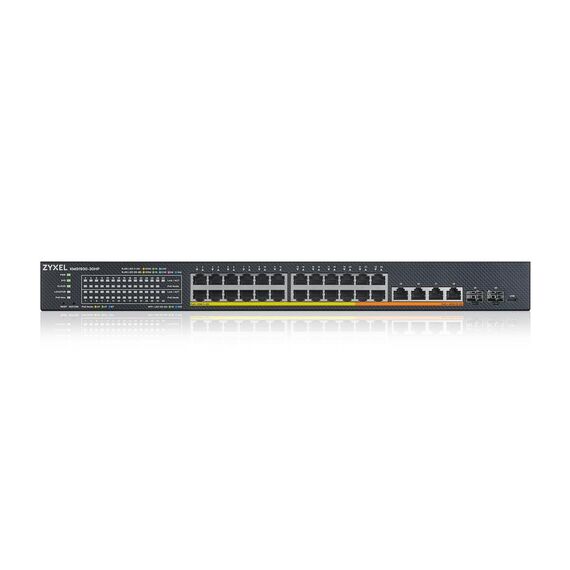

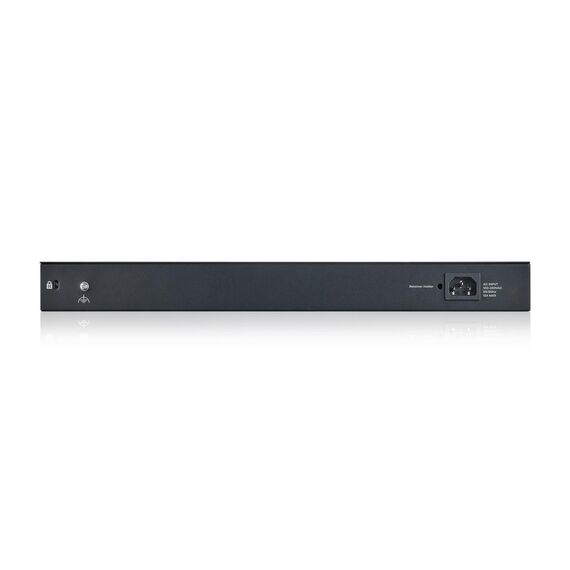

Zyxel XMG1930 Series XMG1930-30HP - Switch - managed, NebulaFLEX cloud - L3 Lite - smart - 20 x 100/1000/2.5G (PoE+) + 4 x 100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x Gigabit SFP / 10 Gigabit SFP+ - rack-mountable - PoE++ (700 W) | XMG1930-30HP-Z
Zyxel XMG1930 Series XMG1930-30HP - Switch - managed, NebulaFLEX cloud - L3 Lite - smart - 20 x 100/1000/2.5G (PoE+) + 4 x 100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x Gigabit SFP / 10 Gigabit SFP+ - rack-mountable - PoE++ (700 W) | XMG1930-30HP-Z
€1812.36 inc. VAT
XMG1930-30HP-ZZ0101F
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 24 ports - L3 Lite - smart |
| Enclosure Type | Rack-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 20 x 100/1000/2.5G (PoE+) + 4 x 100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x Gigabit SFP / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 700 W |
| Performance | Switching capacity: 240 Gbps <br /> Forwarding rate: 178.5 Mpps |
| Capacity | IPv4 forwarding table entries: 512 <br /> IPv6 forwarding table entries: 512 <br /> Routing tables: 32 <br /> IP interfaces: 32 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12000 bytes |
| Routing Protocol | L2PT |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Encryption Algorithm | SSL, SHA-2 |
| Authentication Method | RADIUS |
| Features | VLAN support, IGMP snooping, Syslog support, WFQ, surge protection, ZyXEL iStacking Technology, Port Security, NTP server, SNMP trap, SPQ, 2MB packet buffer, port isolation, GVRP, IGMP filtering, IGMP throttling, Storm Control, CPU protection, policy based rate limiting, MAC address authentication, schedule PoE, Loop Guard, Voice VLAN, Guest VLAN, WRR, port-based VLAN, IVL, PPPoE relay, ESD Protector, LLDP-MED, MIB support, RADIUS Server |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Expansion / Connectivity | |
| Interfaces | 24 x 2.5GBase-T RJ-45 PoE+ <br /> 4 x 2.5GBase-T RJ-45 PoE++ - 60 W <br /> 4 x 10GBase-T RJ-45 PoE++ - 60 W <br /> 2 x 1/10Gbit LAN SFP+ |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Included Accessories | Power cord |
| Rack Mounting Kit | Included |
| MTBF | 587,922.31 hours |
| Compliant Standards | BSMI, EMC, RoHS, FCC Part 15 A, LVD |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Weight | 4.85 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 59.2 cm |
| Shipping Depth | 50.5 cm |
| Shipping Height | 9.7 cm |
| Shipping Weight | 6.04 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Zyxel - XMG1930-30HP-ZZ0101F
General
8-Port
More Details
Product Code
CG68162
EAN Code
4718937622078
Manufacturer
Zyxel
